Creating horizontal clustering in websphere application server 8.5.5




horizontal clustering :

Steps to Create WebSphere application server cluster;

1. Login to DMGR Admin Console -> Servers-> Clusters > WebSphere application server clusters -> On Right Panel Click New


Step 1: Click  New to Create WebSphere Application server Cluster


Step 2: Provide a Cluster name & Select Configure HTTP session memory-to-memory replication, then click "Next" button



Step 3: Provide a "Member name" and "Select node" (Here I  have slected devserver03Node01), then click "Next" button



Step 4: Provide a "Member name" (Another Member Name), "Select node" (Here I  have slected devserver04Node01), then click  on "Add Member" and then click "Next" button

Note: Once you added the member it will apear below



Step 5: On Summary verifiy and the given details are as per recuirement and then click "Finish" button

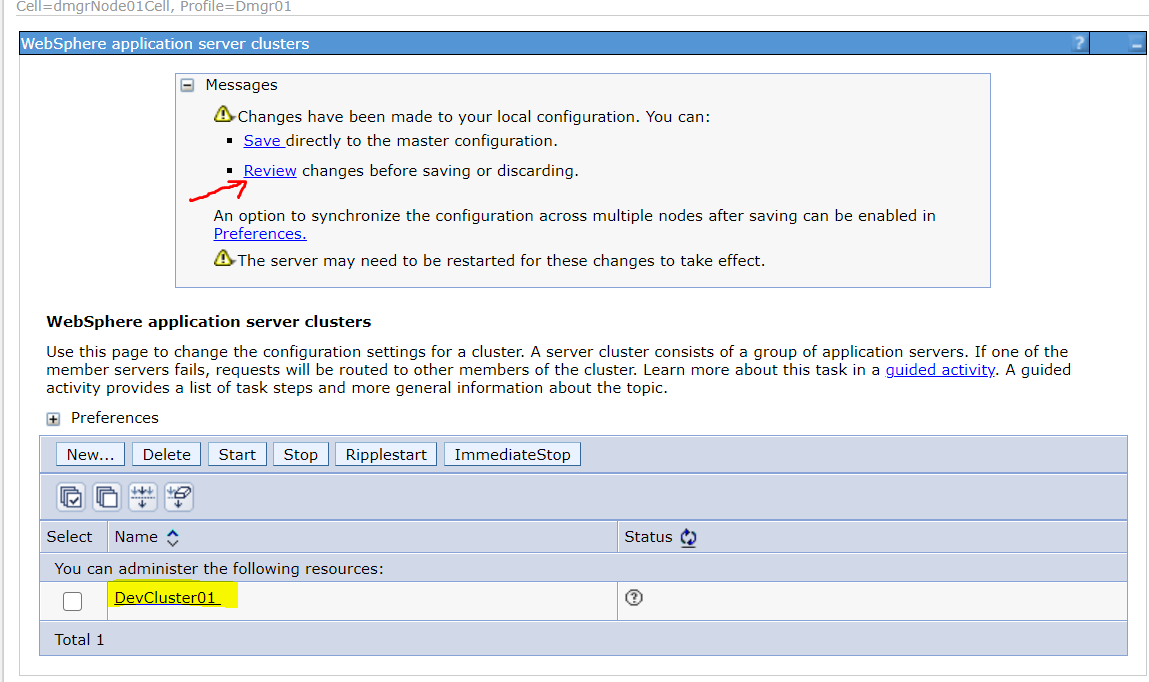

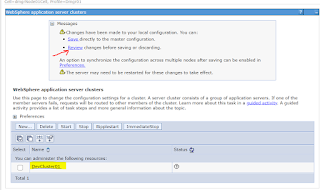

Step 6: Click On "Review"



Step 7: Select "Synchronize changes with Nodes check box and click "save" button to synchronize the changes with nodes.


Step 8: Once the synchronization is completed click "OK" button.

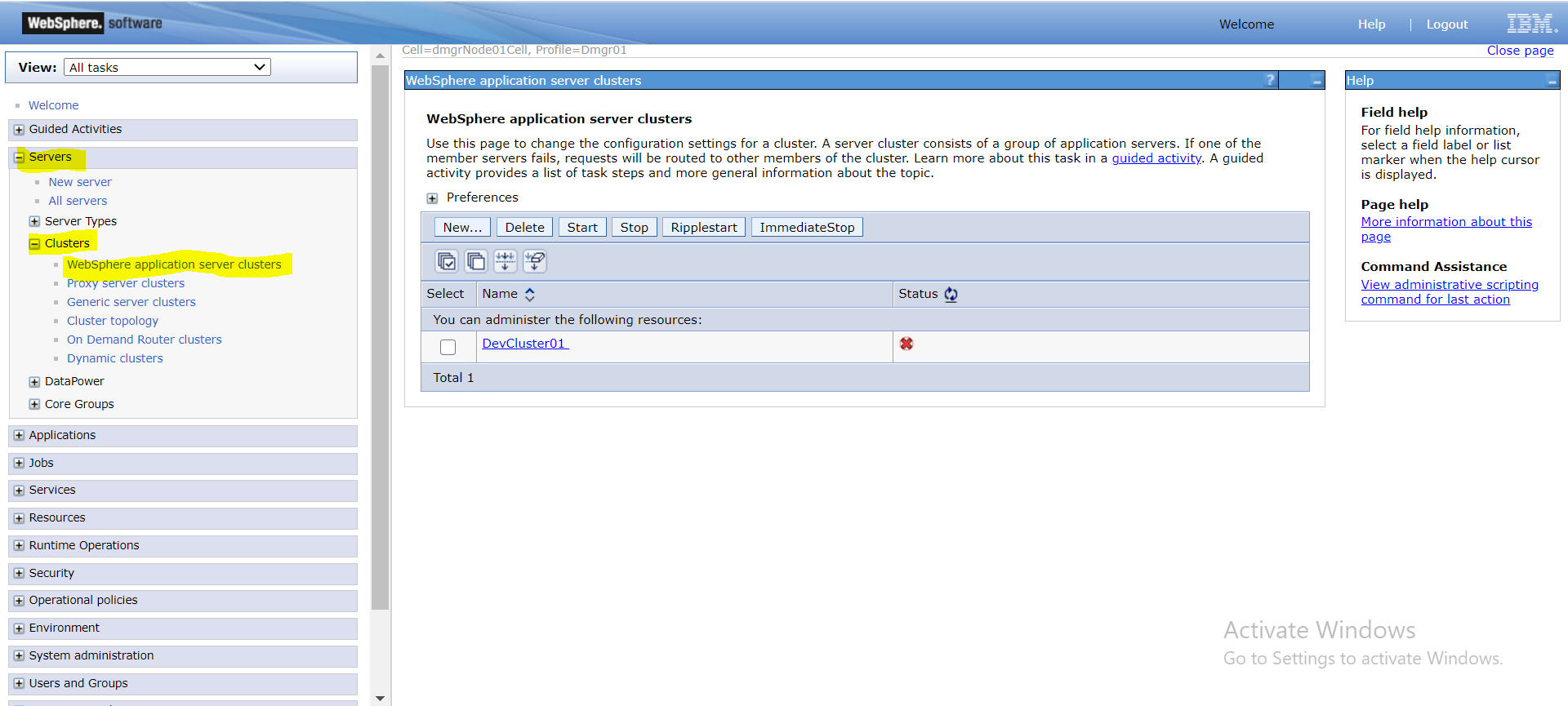

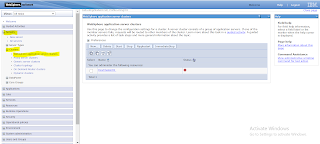

Step 9: Verify Cluster is created successfully.

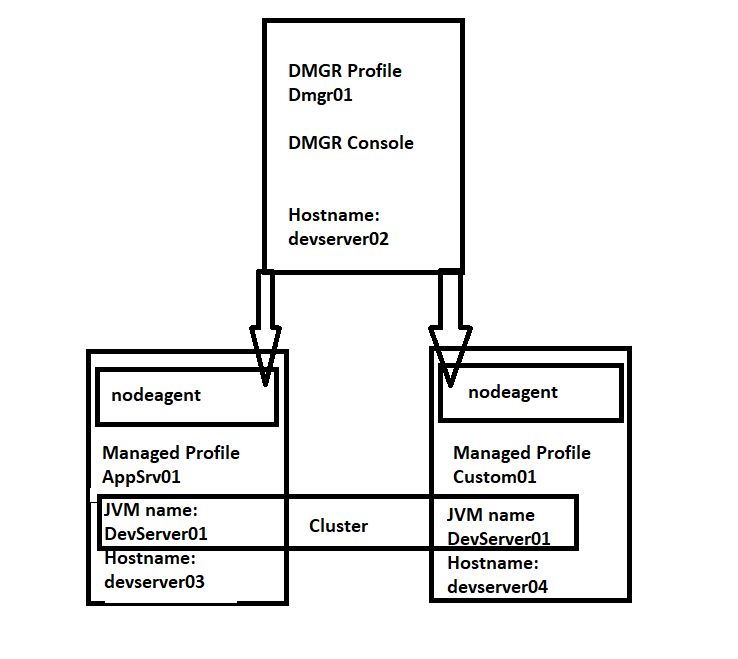

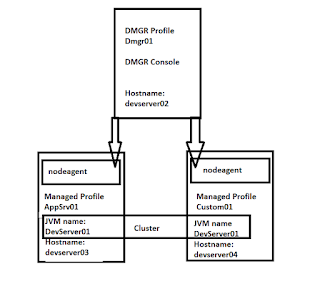

Step 10: Verifiy the JVM's are in same Cluster name and different Nodes/Host(Server).


Step 11: Relax now for a while :)
